Oversized glass, also called jumbo size glass, is increasingly used in modern architectural projects to meet high aesthetic and design requirements. When a building design includes too many glass joints or gaps, the overall visual effect can be negatively impacted. To achieve cleaner lines, wider views, and a more seamless appearance, oversized glass panels are often preferred.
2440mm×3660mm [8’×12″] —————-called oversize（elementary）
3300mm×13000mm [ 10’10“×42’8”] —–for Vivois Oversized Standard
3300mm×18000mm) [10’10“×59’1″)] —-called extreme
2750mm × 6200mm [9′ × 20’4″] ———-for curved tempered glass
In general, glass is considered oversized when the width exceeds 2440 mm (8 ft) and the height exceeds 3660 mm (12 ft).
Oversized glass: width: ≥ 2440mm * (8′) ; height: ≥ 3660mm (12′); extreme lengths: ≥ 18,000mm (59’1″).

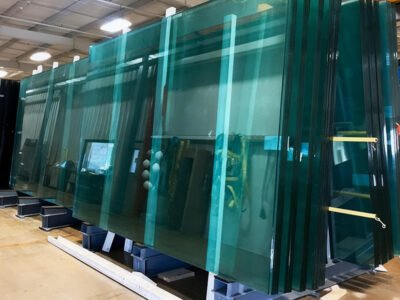

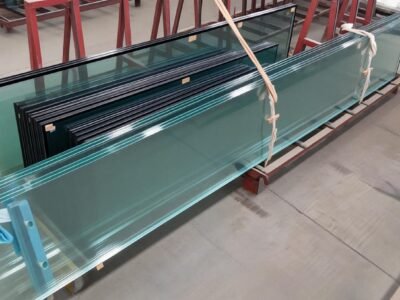

Oversized glass can be processed into different architectural glass types, including tempered glass, laminated glass, and insulated glass, depending on project requirements for safety, strength, and thermal performance.
The maximum available dimensions for our standard products are 3,300mm × 13,000mm (10’10” × 42’8″), with custom options available for extreme lengths up to 18,000mm (59’1″). Additionally, we offer curved tempered glass with production capabilities up to 2,750mm × 6,200mm (9′ × 20’4″).
Oversized glass allows architects and designers to create open, transparent spaces while maintaining structural performance and visual elegance, making it an ideal solution for high-end facades, curtain walls, and landmark architectural projects.
Below are the standard technical parameters of our oversized Glass products. Custom specifications are available according to project requirements.
| Specification Item | Standard Range | Optional Customization |
|---|---|---|
| Maximum Panel Size | Up to 3300mm × 7000mm | Larger sizes upon request |
| Glass Thickness | 6mm – 19mm | Multi-layer laminated options |
| Processing Type | Tempered / Laminated / Insulated | Heat-Soak Tested available |
| Flatness Tolerance | ≤ 0.3% | High-precision architectural grade |
| Edge Processing | Flat Polished / Beveled / Seamed | CNC precision finishing |
| Coating Options | Low-E / Solar Control / Reflective | Double or Triple Silver Low-E |
| Insulated Glass Thickness | 18mm – 60mm | Argon / Krypton gas filling |
| Safety Standard | ANSI / EN / AS Standard | Project-specific compliance |
| Impact Resistance | High (Tempered & Laminated) | SGP interlayer available |
| Light Transmittance | 70% – 90% | Based on coating selection |
| UV Protection | Up to 99% (Laminated) | Custom interlayer options |
| Packaging | Reinforced Export Wooden Crates | Customized container loading |
For structural applications, Over-size Glass panels are engineered to meet demanding load requirements:
Wind Load Resistance: Engineered per project design
Thermal Stress Resistance: Tempered processing ensures high durability
Sound Insulation: Up to 45 dB (Insulated laminated units)
Thermal Performance (IGU): U-value adjustable based on configuration
Over-size Glass can be manufactured to comply with regional building regulations and performance standards, depending on destination markets.
To demonstrate the practical value of Over-size Glass, here are representative project applications across different architectural sectors. These cases highlight structural capability, manufacturing precision, and export experience.
Location: North America
Application: Commercial Office Tower
Glass Type: Tempered Insulated Over-size Glass
Panel Size: 3300mm × 6000mm
This landmark commercial building required large-format curtain wall panels to reduce vertical joints and create a seamless façade. Our Over-size Glass units were manufactured as double-glazed insulated panels with high-performance Low-E coating to meet strict energy codes.
Key Results:
The use of Over-size Glass allowed the architect to achieve a minimalist exterior while maintaining structural reliability at high elevation.
Case 2: Luxury Residential Villa
Location: Middle East
Application: Floor-to-Ceiling Sliding Windows
Glass Type: Laminated Tempered Over-size Glass
Panel Size: 3000mm × 4800mm
This high-end villa project emphasized uninterrupted sea views and indoor-outdoor integration. Over-size Glass panels were laminated with safety interlayers to ensure durability and impact resistance under extreme climate conditions.
Key Results:
The Over-size Glass solution provided both architectural elegance and climate adaptability.
Location: Europe
Application: Frameless Glass Storefront
Glass Type: Tempered Over-size Glass
Panel Size: 3500mm × 5500mm
A global fashion brand required ultra-clear storefront glazing to maximize product visibility. Over-size Glass panels reduced the need for vertical mullions, delivering a fully transparent display window.
Key Results:
The project demonstrates how Over-size Glass enhances brand presentation and architectural identity.
Location: Asia-Pacific
Application: Structural Glass Wall System
Glass Type: Laminated Insulated Over-size Glass
Panel Size: 3200mm × 5200mm
This transportation hub required large glass spans for public areas. Over-size Glass was engineered to withstand high wind loads and temperature variations.
Key Results:
Over-size Glass contributed to both sustainability goals and iconic architectural design.
